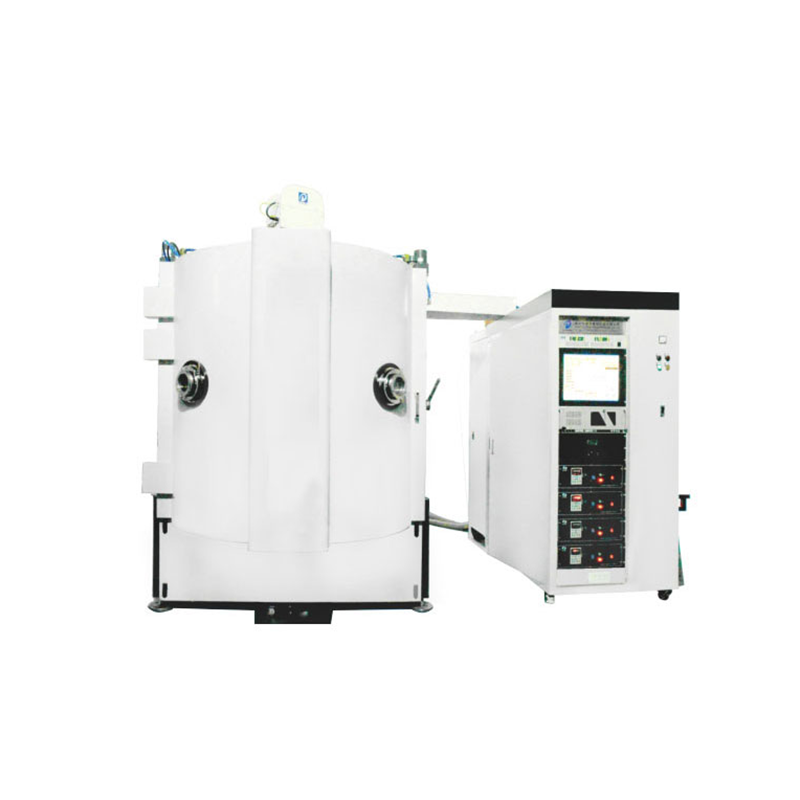

The AR+AF Magnetron Sputtering Metallizer stands as a critical asset for fabricating premium display screens, mobile phone panels, and sophisticated vehicle-mounted interfaces. When operating this machinery, engineers will immediately notice the quiet, consistent hum of its advanced molecular and roots pump system, rapidly drawing down the atmosphere to create an immaculate vacuum environment. The tactile response of the heavy-duty vertical chamber doors, sealing with absolute precision, speaks to the unparalleled craftsmanship invested in its structural design. Inside, the specialized evaporation power supply and ion sources work in perfect harmony to deposit microscopically flawless, durable films onto delicate substrates. Every cycle yields a visually stunning, crystal-clear anti-reflective and anti-fingerprint finish that feels incredibly smooth to the touch and aggressively repels smudges and moisture. This system transforms raw glass and synthetic panels into high-value, resilient components, offering a seamless integration into high-volume manufacturing lines while elevating the final product's optical clarity and tactile superiority.
Understanding the precise technical capabilities of your equipment is essential for optimizing production workflows and facility layouts. The AR+AF Magnetron Sputtering Metallizer is built with uncompromising attention to detail, ensuring that every specification translates into tangible operational advantages. The system integrates top-tier components, including magnetron sputtering targets, ion sources, and a special evaporation power supply, tailored for display screens, mobile phones, and vehicle-mounted products. Below are the exact technical parameters for our core model, demonstrating its capacity for rapid atmospheric evacuation, sustained high-vacuum performance, and quick, convenient loading and unloading.
| Parameters | DL-2000H | Remarks |
|---|---|---|
| Size of vacuum chamber | ∅2000*1400 mm | Diameter & Height |
| Vacuum chamber type | Vertical | |
| Door Inspection window | Single or double door | |
| Ultimate pressure | 7.8×10⁻⁴ Pa | Unload |
| Vacuum system | Molecular pump + roots pump + holding pump | |
| Working Vacuum | 7.0×10⁻² Pa≤10min | Unload: 10min Full load≤11min |
Achieving flawless surface treatments requires equipment that leaves nothing to chance. This metallizer is meticulously engineered to provide absolute control over the deposition process, ensuring every batch meets the strictest industry standards for optical clarity and surface durability.
Rapid Cycle Times: Engineered for swift atmospheric evacuation, significantly reducing waiting periods between batches and keeping your production line moving continuously.
Exceptional Adhesion: The integrated ion sources prepare the substrate surface meticulously, ensuring the final coating bonds permanently without flaking, peeling, or micro-cracking over time.
Ergonomic Operation: The loading and unloading mechanisms are designed to minimize operator fatigue, allowing for smooth, continuous production shifts without physical strain.
Stable Power Delivery: Specialized evaporation power supplies eliminate voltage spikes, guaranteeing a uniform and predictable coating thickness across all substrates in the chamber.
The foundation of any superior coating lies in its underlying technological architecture. We have integrated industry-leading hardware to ensure this metallizer operates with relentless precision, stability, and longevity.
Advanced Magnetron Sputtering Targets: Delivers an exceptionally high deposition rate, allowing for dense, uniform film layers that dramatically enhance the optical clarity of the finished glass.
High-Efficiency Ion Sources: Generates a highly ionized plasma environment, which is absolutely crucial for pre-cleaning substrates and densifying the deposited film for maximum physical durability.
Premium Vacuum Pumping System: Utilizing a robust, multi-stage combination of a molecular pump, roots pump, and holding pump to create a pristine, contamination-free environment in record time.
Unwavering Stability: The seamless synergy between the specialized power supply and the sputtering targets ensures continuous, uninterrupted operation, preventing costly material waste and ensuring peak operational efficiency.
Time is a critical metric in large-scale manufacturing environments. This equipment is specifically calibrated to accelerate your production capabilities without compromising on the meticulous quality required for high-end optical coatings.
Extreme Ultimate Pressure: Reaching an impressive 7.8×10⁻⁴ Pa in an unloaded state, guaranteeing the ultra-clean atmospheric environment essential for flawless optical films.
Rapid Working Vacuum: Achieves a working vacuum of 7.0×10⁻² Pa in just 10 minutes when unloaded, and under 11 minutes even when fully loaded, drastically cutting down overall cycle times.
Streamlined Workflow: The intuitive quick-load and unload structural design minimizes mechanical downtime, allowing operators to transition between massive batches seamlessly.
High-Yield Output: By minimizing the time spent in the vacuum-pumping phase, facilities can significantly increase their daily throughput and maximize their return on capital investment.
The ultimate test of a metallizer is the tactile and visual perfection of the finished product. This system excels in depositing specialized anti-reflective (AR) and anti-fingerprint (AF) layers that meet the most rigorous global consumer standards.
Flawless AR Coatings: Drastically reduces surface glare and light reflection, providing end-users with crystal-clear visibility on display screens even under harsh, direct sunlight.
Superior AF Properties: Creates an ultra-smooth, hydrophobic surface that aggressively repels oils, moisture, and fingerprints, maintaining a pristine look and a silky tactile feel.
Micro-Level Uniformity: The precise internal control mechanisms ensure that the coating thickness remains absolutely consistent across the entire surface area of every single substrate.
Exceptional Durability: The resulting films exhibit outstanding resistance to daily wear, physical abrasion, and environmental corrosion, significantly extending the lifespan of mobile and automotive screens.
The physical construction of the vacuum chamber dictates both the versatility and the longevity of the equipment. We have engineered a robust, high-capacity chamber designed to handle diverse production demands with unwavering reliability.
Massive Vertical Capacity: Featuring a substantial ∅2000*1400 mm dimension, the vertical chamber accommodates exceptionally large batches or oversized individual components with absolute ease.
Flexible Access Options: Available with single or double door configurations, complete with clear inspection windows, allowing facility managers to optimize their floor layout and operational flow.
Premium Structural Integrity: Constructed from high-grade stainless steel materials utilizing advanced welding techniques, ensuring absolute airtightness and preventing microscopic leaks over decades of heavy use.
Thermal and Stress Resistance: The heavy-duty chamber walls are engineered to withstand continuous thermal cycling and immense pressure differentials without warping, degrading, or compromising the vacuum seal.
Complex coating processes should not require overly complicated manual interventions. This system integrates sophisticated automation to simplify operations, reduce human error, and ensure absolute consistency across every production run.
Intelligent Touchscreen Interface: Operators can monitor and control the entire vacuum and deposition process through a highly responsive, intuitive digital dashboard that displays real-time metrics.
One-Touch Operation: From initiating the heavy-duty vacuum pumps to finalizing the delicate deposition sequence, the automated control system handles complex transitions seamlessly.
Real-Time Parameter Tracking: Continuous digital monitoring of internal pressure, power output, and gas flow ensures that any minor deviations are instantly corrected, maintaining strict quality control.
Eco-Friendly and Safe: The fully enclosed, automated process minimizes operator exposure to the internal environment, promoting a safer, cleaner, and more sustainable manufacturing floor.
Versatility is paramount for facilities serving dynamic, fast-paced technology sectors. This metallizer is recognized globally as the most universal and preferred method for applying advanced surface treatments across multiple high-tech industries.
Smart Device Displays: Perfectly calibrated for applying ultra-thin, highly durable coatings on mobile phone cover glasses, enhancing both the visual aesthetics and the user's touch interaction.
Automotive Interfaces: Meets the stringent durability and anti-glare requirements for vehicle-mounted screens, ensuring critical driver visibility and safety in rapidly changing light conditions.
General Optoelectronics: Highly adaptable for a wide range of optical lenses, precision sensors, and instrument panels requiring exact light transmission control and environmental protection.
Seamless Line Integration: Designed to slot effortlessly into existing manufacturing workflows, allowing facilities to upgrade their coating capabilities without overhauling their entire production infrastructure.
Acquiring heavy industrial equipment is a long-term commitment, and our comprehensive support structure is designed to guarantee your operational success from day one and for many years to come.
Tailored Configurations: We offer extensive customization options for chamber sizes and internal component layouts to perfectly match your specific substrate dimensions and daily production volumes.
Global Installation and Commissioning: Our expert technicians provide comprehensive on-site setup and precise calibration, ensuring the equipment operates at peak performance immediately upon deployment.
Process Recipe Guidance: We do not just supply the machinery; we provide expert, hands-on guidance on coating recipes and parameters to help you achieve the exact AR and AF results your clients demand.
Rapid Parts and Maintenance: Backed by a robust global inventory of spare parts and a highly responsive technical support team, we ensure your facility's downtime is kept to an absolute minimum.
Selecting the right equipment provider is just as crucial as the machinery itself. Our unwavering commitment to engineering excellence ensures that you receive not only top-tier technology but also a partnership dedicated to your long-term operational success.
Direct Source Advantage: By bypassing intermediaries, we provide exceptionally competitive pricing without ever compromising on the rigorous quality of our internal components and structural materials.
Proven Global Track Record: Our advanced metallization systems are trusted by leading tech manufacturers worldwide, recognized as the gold standard for reliability, yield, and performance.
Relentless Quality Control: Every single unit undergoes exhaustive stress testing and simulated production runs before it leaves our facility, guaranteeing flawless operation upon arrival at your site.
Continuous Innovation: We heavily reinvest in research and development, ensuring that our clients always have access to the absolute latest advancements in vacuum coating and plasma technology.
The integrated vacuum system drastically accelerates the evacuation of atmospheric gases. The roots pump provides massive volumetric displacement at medium pressures, while the molecular pump achieves the ultra-high vacuum required. This synergy ensures the chamber reaches 7.0×10⁻² Pa in under 11 minutes even when fully loaded, preventing contamination and maximizing your daily throughput.
Yes, the expansive ∅2000*1400 mm vertical chamber is specifically designed for maximum versatility. Whether you are processing thousands of small mobile phone screens or large, curved vehicle-mounted displays, the internal fixturing can be adapted to ensure uniform deposition across all surfaces without compromising capacity.
AF coatings require extremely dense and uniform molecular structures to achieve high hydrophobicity. The advanced ion sources in this equipment pre-clean the substrate at a microscopic level and densify the coating as it is applied, ensuring the AF layer bonds permanently and withstands rigorous daily abrasion and chemical exposure.
Absolutely. The specialized evaporation power supply is engineered specifically for heavy-duty, continuous operation. It delivers a highly stable, fluctuation-free current to the magnetron sputtering targets, which is critical for maintaining consistent film thickness and preventing visual defects during demanding 24/7 production cycles.
Facilities need to ensure adequate floor space for the vertical chamber footprint and door clearance (single or double door options must be accounted for). Additionally, proper electrical routing for the high-capacity power supplies and appropriate cooling water connections are necessary. Our technical team provides highly detailed site preparation guidelines well in advance of delivery to ensure a smooth installation.
