Operating a vacuum metallizer in the flexible packaging industry carries high stakes. Minor deviations in process control lead to high scrap rates, poor barrier properties, and compromised downstream converting. Operators face constant technical friction on the production floor. You must maximize line speed for throughput while maintaining pristine coating uniformity. This balance becomes extremely difficult when managing heavy thermal loads and precise web tension on delicate substrates like PET, BOPP, and CPP.
A holistic process control strategy solves these operational friction points. This strategy spans vacuum pump sequencing, evaporation boat management, surface preparation, and advanced web handling. Implementing a Free Span Metallizer architecture allows operators to achieve consistent, high-yield production. It removes the thermal and physical constraints associated with traditional cooling drums, offering superior control over the deposition environment.
Vacuum Ecosystem Sequencing: Optimal deposition requires precise staging of roughing, booster, and diffusion pumps to eliminate air volume and vapors before vaporization begins.
Web Handling is Critical: Utilizing a free span metallizer setup demands rigorous tension control to prevent wrinkles and manage the thermal load without relying solely on traditional cooling drum contact.
Surface Preparation Dictates Adhesion: Raw substrates must undergo in-line surface treatment to remove migrating additives and contaminants, ensuring a blemish-free, high-adhesion aluminum coating.
Evaporation Source Control: Consistent barrier performance relies on the automated or precise manual control of the aluminum pool size on the evaporation boats, especially on wide-web machines.
Process engineers and converters evaluate metallizer performance through strict output quality indicators. High-productivity packaging environments demand strict adherence to these baseline metrics. You cannot optimize a process without first defining the exact parameters of a successful production run. We measure success through barrier integrity and visual uniformity on the finished roll.
Establishing these baselines requires continuous monitoring. Operators rely on both inline sensors and offline laboratory testing to verify that the metallized film meets the exact specifications required by the end-user. A failure in either barrier performance or visual consistency renders the master roll unusable for high-end packaging applications.
Oxygen Transmission Rate (OTR) and Water Vapor Transmission Rate (WVTR) dictate the viability of the final packaging. These metrics measure the volume of gas or moisture passing through a specific area of film over a 24-hour period. Food, medical, and industrial packaging require near-zero transmission rates to prevent product spoilage and degradation. For example, high-barrier PET films often target an OTR of less than 0.5 cc/m²/day.
Coating density correlates directly to barrier efficacy. A dense, uniform aluminum layer blocks gas permeation at the microscopic level. Operators must monitor the crystalline structure of the deposited aluminum. Loose or porous deposition layers fail standard OTR and WVTR tests immediately. Achieving the target barrier requires precise synchronization between the evaporation rate and the substrate line speed. If the web moves too fast relative to the evaporation rate, the resulting aluminum layer will lack the density required to stop oxygen and moisture migration.
Optical Density measures the amount of light transmitting through the metallized film. It utilizes a logarithmic scale to quantify the thickness and density of the aluminum layer. Standard packaging films typically target an OD range between 2.0 and 2.5, though high-barrier applications may push this number up to 3.0 or higher. Operators use inline densitometers to monitor this metric continuously across the entire width of the moving web.
Acceptable variance margins across the web width remain incredibly tight. Uneven deposition creates visible banding and compromises the barrier profile. This variance disrupts downstream lamination and printing processes. Uneven metal thickness causes uneven adhesive curing. It leads to poor print registration and eventual delamination during consumer use. Maintaining a flat OD profile requires constant micro-adjustments to the individual evaporation boats spanning the width of the machine.
Mechanical subsystems must create the optimal environment for aluminum sublimation. The vacuum ecosystem represents the heart of the metallizing process. These key subsystems must work together seamlessly to evacuate atmospheric pressure and handle continuous outgassing from the polymer substrates.
Operating at atmospheric pressure would cause the vaporized aluminum to oxidize instantly, creating a useless white powder instead of a brilliant metallic coating. Therefore, the chamber must reach and maintain a deep vacuum, typically around 10⁻⁴ mbar, to ensure the aluminum vapor travels in a straight line from the evaporation boat to the film surface without colliding with air molecules.
Creating a deep vacuum requires a highly orchestrated sequence of specialized pumps. Operators cannot simply activate all pumps simultaneously. You must stage them to prevent mechanical failure and oil backstreaming into the clean deposition zone.
Roughing Pumps: These heavy-duty mechanical blowers, often rotary vane or Roots-type pumps, remove the initial atmospheric air volume from the chamber. They drop the pressure rapidly from ambient levels down to a rough vacuum state.
Booster Pumps: Once the roughing pumps reach their operational limit, booster pumps engage. They extract further air and vapor, bridging the gap between rough vacuum and high vacuum efficiently.
Diffusion Pumps: These highly specialized pumps utilize superheated oil vapor jets to capture stray gas molecules. They achieve the deep vacuum required for flawless aluminum sublimation and operate continuously during the metallizing run.
Substrate moisture content severely affects vacuum pump-down times. Polymeric films, especially nylon and PET, absorb ambient moisture during warehouse storage. This moisture outgasses violently once exposed to the deep vacuum inside the chamber. Outgassing degrades ecosystem efficiency and introduces oxygen into the deposition zone, which oxidizes the aluminum vapor and ruins the coating.
Cryogenic panels, often called polycold systems or Meissner traps, provide the most effective defense against outgassing. These super-cooled copper coils sit directly inside the vacuum chamber, operating at temperatures around -130°C. They trap water vapor instantly upon contact, freezing it into solid ice. This mechanism accelerates cycle times significantly. It maintains deep vacuum stability during high-speed, continuous production runs, allowing the diffusion pumps to focus on non-condensable gases.

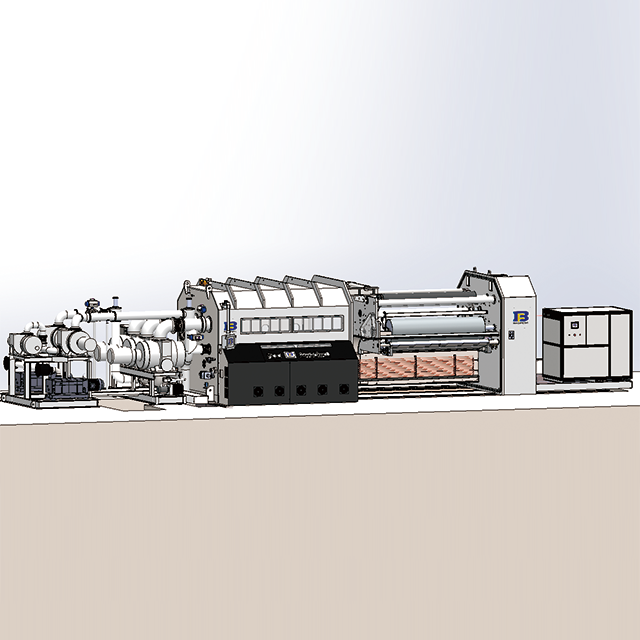

Analyzing the specific mechanics of free span web handling reveals distinct advantages over traditional drum-supported deposition. A Free Span Metallizer suspends the film directly over the evaporation source. This architecture eliminates the physical defects associated with dirty or scratched cooling drums.
Traditional systems wrap the film around a chilled process drum. While this provides excellent cooling, any debris, dust, or scratches on the drum surface will imprint directly onto the metallized film. The free span approach removes this contact point entirely, resulting in a pristine, defect-free metallic finish.
Unwinding, transport, and rewinding occur under deep vacuum conditions. The lack of air resistance changes the physical behavior of the moving web. The metallizer's web handling system utilizes highly sensitive load cells and closed-loop tension control to manage this environment. Handling extensible films like Cast Polypropylene (CPP) requires extreme precision to prevent the material from necking down or snapping under tension.
These systems prevent web flutter and eliminate wrinkling in the free span zone. Precise PID controllers adjust motor torque in milliseconds based on continuous load cell feedback. Maintaining a perfectly flat web profile ensures the aluminum vapor condenses evenly across the entire surface area. Even a microscopic wrinkle will create a shadow effect, leaving a strip of unmetallized film that compromises the entire roll.
Managing the heat of condensation presents the primary challenge in this architecture. Aluminum vapor releases massive amounts of latent heat when it condenses onto the cooler film surface. Free span setups lack the direct contact cooling provided by a traditional chilled drum, meaning the film must absorb and dissipate this heat independently.
Operators must evaluate strategies for pre-cooling the web before it enters the deposition zone. Managing line speeds prevents thermal distortion. Heat-sensitive films like LDPE or CPP will melt, stretch, or snap without rigorous thermal balancing. You must calibrate the evaporation rate precisely against the web speed to dissipate the thermal load effectively. Running the web at 800 meters per minute might be necessary to prevent a thin CPP film from absorbing too much heat and distorting.
Feature Evaluation | Free Span Architecture | Drum-Supported Architecture |
|---|---|---|
Cooling Mechanism | Pre-cooling rollers and ambient radiant dissipation. | Direct physical contact with a chilled process drum. |
Tension Dependency | Requires ultra-precise closed-loop load cell feedback. | Relies partially on drum friction and nip rollers. |
Defect Risk | Prone to thermal stretching if speed is too slow. | Prone to drum scratches and particulate imprinting. |
Coating Uniformity | Excellent edge-to-edge consistency without drum shadowing. | Subject to variance based on drum surface wear. |
Prerequisite steps must occur before the film enters the deposition zone. The coating must bond aggressively to the substrate to achieve a brilliant, functional finish. You cannot metallize a contaminated surface and expect the barrier properties to survive downstream processing.
If the aluminum layer does not adhere properly, it will transfer onto the adhesive during lamination or flake off entirely during the rewinding process. Achieving high metal adhesion requires raising the surface energy of the polymer film, typically measured in dynes. Operators generally target a surface energy of 50 dynes/cm or higher prior to metallization.
Raw substrates carry inherent surface defects from the extrusion process. Migrating slip additives, oligomers, dirt, and dust plague raw rolls. These contaminants create physical barriers between the film surface and the condensing aluminum vapor. When the film is wound into a tight roll, these additives migrate to the surface over time.
Contaminants cause severe pinholing across the web. They lead to a catastrophic loss of metal adhesion. The aluminum layer simply flakes off during rewinding or downstream lamination. Operators must audit raw material quality constantly. You must reject rolls exhibiting heavy surface blooming or excessive particulate contamination before loading them into the vacuum chamber. Running contaminated film wastes expensive machine time and consumable materials.
Standard plasma and corona treaters operate directly inside the vacuum chamber. They clean the web and raise the surface energy immediately before deposition. High surface energy allows the aluminum vapor to wet out evenly and bond at the molecular level.
Plasma Treatment: Utilizes ionized gas, typically a mixture of argon and oxygen, to scrub the film surface. This removes low-molecular-weight contaminants and creates functional bonding sites for the aluminum atoms.
Chemical Seeding: Advanced metal adhesion processes utilize specialized chemical bonding technologies applied during extrusion to promote aggressive, ultra-high aluminum bonding.
Corona Discharge: Applies a high-voltage electrical discharge to oxidize the film surface, increasing dyne levels for standard packaging applications.
You must connect the mechanical operation of the evaporation bank directly to the final barrier quality of the film. The evaporation source dictates the density, uniformity, and physical structure of the metallized layer.
The evaporation bank consists of dozens of individual ceramic boats arranged in a staggered formation across the width of the machine. Each boat must operate at the exact same temperature and evaporation rate to ensure a uniform coating profile. A single failing boat will create a visible light band on the finished roll.
Ceramic evaporation boats, typically composed of Titanium Diboride and Boron Nitride, utilize electrical resistance heating to melt aluminum wire. The aluminum wire melts upon contact with the superheated ceramic cavity, which operates at temperatures exceeding 1400°C. It spreads into a molten pool before sublimating into a vapor cloud. The physics of the ceramic boat dictate overall evaporation efficiency.
Manual control of the aluminum pool size on wide-web metallizers proves incredibly difficult. Operators cannot visually monitor dozens of boats simultaneously through the small viewport. Automated wire feed systems mitigate this risk entirely. They ensure a consistent pool size across the entire evaporation bank. A stable pool size guarantees a reliable barrier and prevents the ceramic boats from burning out prematurely due to dry running.
Wire feed speed dictates the evaporation rate. This rate directly controls the final coating thickness on the moving web. If the 1.5mm aluminum wire feeds too slowly, the aluminum pool dries up, causing the boat to overheat, crack, and fail. If the wire feeds too quickly, the pool overflows, causing molten aluminum to splatter directly onto the film, creating massive physical defects.
In-line optical density monitors create a closed-loop feedback system. The system reads the light transmission through the film in real-time. It makes instantaneous wire feed adjustments to individual evaporation boats. This closed-loop control maintains strict spatial uniformity across the entire web width, eliminating human error from the deposition process and ensuring the OD remains locked at the target value.
Modern production facilities require a framework for evaluating operational productivity gains. High-output metallizing equipment must deliver consistent uptime. You must balance aggressive production targets with the mechanical realities of consumable wear and routine maintenance.
Pushing a machine beyond its engineered limits results in diminishing returns. While running at maximum speed might look good on a shift report, the resulting increase in scrap rates and consumable failures will ultimately destroy overall profitability. Operators must find the sweet spot between speed and stability.
Ceramic evaporation boats possess a strictly limited lifecycle. They degrade continuously under extreme thermal stress and molten aluminum exposure. Running the metallizer at maximum line speeds yields the highest possible productivity. It maximizes the square footage of film processed per shift.
However, this aggressive approach accelerates consumable wear significantly. Pushing the boats to evaporate larger volumes of aluminum requires higher electrical currents, which degrades the ceramic matrix faster. It also raises the potential for thermal defects on the film substrate. Operators must find the optimal processing speed. You must maximize yield without compromising barrier quality or burning through expensive ceramic boats at an unsustainable rate.
Automated roll-change mechanisms and fast pump-down cycles dramatically improve overall equipment effectiveness (OEE). Minimizing the time spent venting the chamber, swapping rolls, and pulling vacuum directly increases daily output. Every minute the chamber sits at atmospheric pressure is lost production time.
Standard preventative maintenance keeps the machine running reliably. Operators must execute strict maintenance protocols between production runs to prevent catastrophic failures during a high-speed run.
Schedule routine vacuum pump service to change contaminated oil and inspect mechanical seals.
Perform rigorous chamber cleaning to remove excessive aluminum build-up from internal shielding and sensor windows.
Inspect and replace worn wire guide tubes to prevent wire jamming during operation.
Calibrate load cells and tension rollers to ensure accurate web handling feedback.
Regenerate cryogenic panels periodically to maintain optimal moisture-trapping efficiency and prevent ice bridging.
Check the electrical contacts on the evaporation bank to ensure even power distribution to all ceramic boats.
Even highly optimized systems encounter operational failures. Providing actionable diagnostic frameworks empowers operators to resolve issues quickly. You must identify the root cause of physical defects before they ruin an entire master roll.
Troubleshooting requires a systematic approach. Operators must isolate variables one by one, checking vacuum levels, tension settings, and evaporation rates systematically rather than making random adjustments to the machine parameters.
Splattering occurs when macroscopic droplets of molten aluminum hit the film surface. Trace splattering back to improper boat temperatures. If the boat is too cold, the aluminum does not vaporize cleanly and spits off the surface. Wet aluminum wire or incorrect wire feed placement also causes molten aluminum to spit onto the web. Ensure the wire feeds directly into the center of the boat cavity.
Pinholing presents as thousands of microscopic voids in the coating. Trace pinholing back to inadequate surface cleaning. Excessive dust in the winding zone creates physical shadows. When the dust falls off during rewinding, it leaves an unmetallized pinhole behind. Ensure the winding zone remains meticulously clean and utilize static elimination bars to repel airborne particulates from the raw film before it enters the chamber.
Test for metal adhesion using standard tape tests immediately after the roll finishes rewinding. Apply a specialized adhesive tape to the metallized surface, smooth it out to remove air bubbles, and pull it away rapidly at a 180-degree angle. If the aluminum transfers to the tape, you have an adhesion failure.
Address poor adhesion by adjusting the in-line plasma treatment power. Increase the gas flow or wattage to raise the surface energy further. Utilize advanced chemical bonding treatments if standard plasma fails. Finally, audit the raw film's additive package. Ensure slip agents and anti-block additives are not migrating to the surface and creating a chemical barrier against the aluminum vapor.
Effective film metallization requires a tightly controlled ecosystem. You must balance vacuum depth, thermal management, and evaporation rates simultaneously. Minor deviations in any single subsystem will cascade into catastrophic coating failures and unacceptable barrier properties.
Buyers evaluating a new Free Span Metallizer should prioritize specific engineering features. Look for machines equipped with closed-loop tension control, robust in-line surface treatment capabilities, and fully automated aluminum pool management systems.
Conduct a baseline audit of your current OTR and WVTR defect rates to identify production bottlenecks.
Evaluate your existing vacuum pump efficiency and track pump-down times to detect outgassing issues.
Consult with equipment OEMs to schedule substrate-specific trial runs for heat-sensitive films.
Implement rigorous, documented preventative maintenance schedules for evaporation boats and chamber shielding.
A: A free span metallizer is a vacuum deposition machine that suspends the flexible film directly over the evaporation source without using a traditional chilled cooling drum. It relies on advanced closed-loop tension control to keep the web flat and stable during the metallization process.
A: Operators control aluminum thickness by adjusting the wire feed speed into the ceramic evaporation boats and modifying the line speed of the moving web. In-line optical density monitors provide real-time feedback to automate these wire feed adjustments.
A: Surface treatment, such as plasma or corona discharge, cleans the film of migrating additives and raises its surface energy. This process creates microscopic bonding sites, ensuring the aluminum vapor adheres aggressively and prevents downstream flaking or delamination.
A: Pinholes are primarily caused by surface contamination on the raw substrate. Dust, dirt, or migrating oligomers block the aluminum vapor from reaching the film. When these contaminants fall off later, they leave microscopic unmetallized voids behind.
A: The vacuum pump system dictates how quickly the chamber reaches the deep vacuum required for deposition. Efficient roughing, booster, and diffusion pumps minimize pump-down times between roll changes, directly increasing the total operational uptime and daily throughput.
A: Preventing thermal damage requires precise management of the latent heat released by condensing aluminum. Operators prevent melting or stretching by pre-cooling the web, optimizing line speeds, and strictly controlling the evaporation rate to avoid overloading the film with heat.
