Industrial demand for high-barrier, functional, and decorative coatings on ultra-thin or heat-sensitive substrates pushes the limits of traditional physical vapor deposition equipment. Standard drum-supported vacuum metallizing systems frequently introduce thermal distortion, scratching, and tension inconsistencies when processing delicate polymer webs. These mechanical stresses lead to high scrap rates and compromised barrier properties. While batch vacuum metallizing handles three-dimensional plastic and machined metal parts, high-volume flexible web production requires specialized continuous roll-to-roll architectures. Optimizing production yield means shifting away from generic vacuum metallizing approaches and evaluating specific equipment architectures based on substrate behavior. This guide deconstructs the vacuum metallizing ecosystem. We focus on how deploying a Free Span Metallizer resolves critical web handling and thermal management challenges for complex roll-to-roll applications.
Process Reality: Vacuum metallizing is an interdependent ecosystem of vacuum pumping, web handling, surface pre-treatment, and deposition subsystems, not just a single-chamber reaction.
Architectural Shift: A free span metallizer eliminates the central process drum, allowing coating on both sides of a web and significantly reducing contact-induced defects on sensitive substrates.
Application Alignment: Selecting between drum-supported and free-span systems dictates your capability to process ultra-thin films, low-tension webs, and double-sided decorative or functional plastics.
Vacuum metallizing relies entirely on the physics of physical vapor deposition. The baseline process involves evaporating a solid metal within a high-vacuum chamber. Operators heat the metal past its boiling point until it transitions into a vapor state. This vapor travels upward and condenses into a thin, highly uniform solid layer upon contacting the cooler substrate moving above the source. The vacuum environment dictates the success of this reaction. Operating at deep vacuum levels (typically in the 10⁻⁴ mbar range) prevents the rapid oxidation of the evaporated metal. It also increases the mean free path of the metal atoms. At atmospheric pressure, an evaporated aluminum atom would immediately collide with air molecules, oxidize, and fall as useless dust. Under deep vacuum, the atom travels in a straight, unimpeded line directly to the web.
Material versatility remains a strong point of PVD technology. Aluminum serves as the undisputed industry standard for flexible packaging due to its excellent barrier properties and low raw material cost. The process also accommodates other metals. Copper, silver, and zinc are frequently evaporated for specialized electronic components, RFID tags, and high-end decorative applications. Each metal requires specific evaporation boat configurations, wire feed speeds, and power settings to achieve the correct deposition rate without overloading the power supplies.
A roll-to-roll metallizer functions as a complex ecosystem rather than a single standalone machine. The vacuum pumping group forms the foundation of the entire operation. Roughing pumps, typically massive Roots blowers backed by rotary vane pumps, rapidly evacuate the bulk of the air from the chamber down to about 10⁻¹ mbar. High-vacuum oil diffusion pumps then take over to achieve the deep vacuum necessary for evaporation. Cryogenic panels, or Meissner traps, operate alongside the diffusion pumps to instantly freeze out water vapor outgassing from the substrate.
The evaporation sources provide the intense heat required to vaporize the metal wire. These are typically intermetallic ceramic boats made from titanium diboride and boron nitride composites, heated resistively by passing high electrical current through them. Simultaneously, the web handling and drive system must smoothly transport miles of flexible substrate through the deposition zone. Unwind and rewind drives, combined with multiple tension zones, keep the web flat and stable.
Surface preparation dictates the final adhesion quality of the metal layer. In-line pre-treatment systems, such as plasma or corona discharge units, bombard the substrate surface with ions just before deposition. This modifies the surface energy, raising the dyne level to ensure optimal metal adhesion. Without this step, the metal layer flakes or rubs off during downstream slitting or laminating processes. Perfect synchronization between the vacuum pumps, wire feeders, web drives, and plasma treaters dictates the final coating uniformity.
Heat represents the most significant enemy of thin-film substrates during the metallizing process. The evaporation sources generate an intense heat load. Ceramic boats often exceed 1,500°C to continuously vaporize aluminum wire. As the substrate passes directly over these glowing boats, it absorbs substantial radiant heat. The latent heat of condensation, released when the metal vapor turns back into a solid on the web, adds even more thermal stress to the polymer.
The primary success metric in high-volume metallizing is maintaining substrate integrity under this extreme thermal load. The web must not melt, shrink, warp, or lose its mechanical properties during deposition. A standard 12-micron PET film absorbs massive heat in a fraction of a second. If the heat extraction is insufficient, or if the line speed drops unexpectedly, the substrate distorts, leading to severe wrinkles that destroy the roll. Managing this heat transfer requires precise control over line speeds, source-to-substrate distances, and cooling mechanisms.
Transporting thousands of meters of ultra-thin polymer film through a vacuum chamber requires flawless tension control. The system must maintain precise tension across varying roll diameters as the unwind roll shrinks and the rewind roll grows. Line speeds routinely exceed 800 meters per minute, leaving zero margin for mechanical error. Load cells, dancer rollers, and variable frequency drives must communicate seamlessly to adjust torque in real-time across the unwind, process, and rewind zones.
Traditional contact-heavy systems introduce significant risks during web transport. When a delicate substrate wraps tightly around multiple idler rollers and a central process drum, surface friction increases. This raises the probability of web wrinkling, micro-scratching on the coated surface, and edge-weave. Scratches ruin the aesthetic appeal of decorative films and compromise the oxygen and moisture barriers in packaging applications.
High-volume production demands strict adherence to quality tolerances. Optical density (OD) measures the amount of light blocked by the metallized layer, serving as a rapid indicator of coating thickness. A successful run maintains a consistent OD across the entire width and length of the web. Variations in wire feed rates, boat degradation, or uneven boat spacing cause localized banding or thin spots. Operators monitor this using in-line OD measurement systems that scan the web continuously.
For functional packaging, barrier properties are the ultimate test. Oxygen Transmission Rate (OTR) and Moisture Vapor Transmission Rate (MVTR) must meet stringent specifications to ensure product shelf life. Even microscopic pinholes caused by dust, poor vacuum, or substrate scratching cause OTR and MVTR values to spike. Material with high transmission rates is immediately rejected for food or medical packaging applications.
The drum-supported architecture has dominated the vacuum metallizing industry for decades. In this mechanism, the substrate wraps tightly around a massive, chilled central process drum during the deposition phase. The drum is typically cooled by a closed-loop refrigerated water system, maintaining a surface temperature between -15°C and -20°C. This provides a massive heat sink for the incoming thermal load.
The primary advantage is excellent conductive cooling. As the web absorbs heat from the evaporation sources, the chilled drum rapidly pulls that heat away, keeping standard substrates stable. It also provides highly stable web support, preventing flutter over the evaporation zone. The limitations, however, dictate application boundaries. Drum systems are strictly limited to single-sided coating per pass. The side of the web touching the drum is susceptible to scratching if debris becomes trapped between the film and the metal surface. Furthermore, if the web loses tension and breaks contact with the drum, thermal transfer drops to zero, instantly melting the substrate.

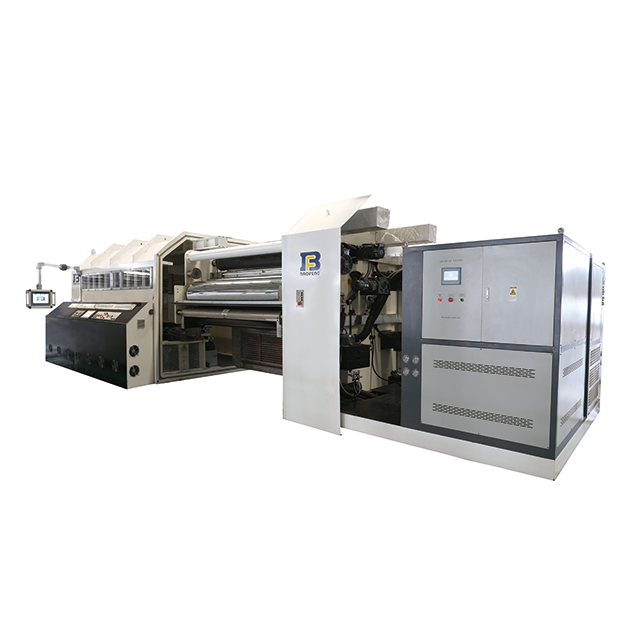

A Free Span Metallizer completely reimagines the deposition zone. In this architecture, the substrate is tensioned between two rollers, passing directly over the evaporation sources without contacting a central cooling drum. The web essentially floats through the coating zone, supported only by the tension applied from the adjacent rollers.
The technical advantages are substantial for specific applications. It enables simultaneous double-sided metallizing if sources are placed on both sides of the web path. It entirely eliminates drum-contact defects, making it ideal for substrates that cannot tolerate high wrap-angles or contact pressure. Instead of relying on direct conductive drum cooling, free span systems manage heat through increased source-to-substrate distance, faster line speeds, and aggressive pre- and post-deposition cooling rollers. The heat is managed dynamically rather than conductively.
Feature | Drum-Supported Metallizer | Free Span Metallizer |
|---|---|---|
Cooling Mechanism | Direct conductive cooling via chilled drum | Dynamic cooling via line speed and distance |
Coating Capability | Single-sided per pass | Capable of simultaneous double-sided |
Contact Defects | Moderate risk (drum-side scratching) | Zero risk in the deposition zone |
Substrate Suitability | Standard packaging films (PET, BOPP) | Ultra-thin, low-tension, and delicate webs |
Tension Requirements | High tension required for drum contact | Lower tension tolerance supported |
The configuration of the evaporation zone directly dictates your production capabilities. Wire feeders must precisely push aluminum wire into the heated ceramic boats at a controlled rate, usually measured in millimeters per minute. The number of boats, their spacing, and the wire feed speed map directly to the resulting coating thickness and maximum allowable line speed. Staggered boat arrangements help overlap the vapor plumes, ensuring uniform optical density across wide webs.
In a free span setup, the source-to-substrate distance plays a critical role in deposition efficiency. Because there is no chilled drum to absorb excess heat, the distance is often slightly increased compared to drum systems. This reduces the radiant heat load on the web but slightly lowers the collection efficiency of the metal vapor. Operators balance the power applied to the boats with the line speed to achieve the target thickness without thermally degrading the suspended web.
Evaluating equipment scalability requires looking at maximum web widths, roll diameters, and pump-down times. Modern metallizers handle web widths exceeding three meters and roll diameters large enough to run for hours without splicing. Pump-down time—the time it takes to evacuate the chamber from atmospheric pressure to operating vacuum—is a major factor in overall equipment effectiveness. High-capacity diffusion pumps and cryogenic coils are essential for rapid cycling between rolls.
For specific applications requiring metal on both sides of the substrate, a free span architecture drastically improves roll-to-roll efficiency. Double-sided coating in a single pass effectively doubles throughput compared to dual-pass drum systems. It eliminates the need to remove the roll, flip it, pump the chamber down a second time, and run it again. This reduces handling damage and cuts production time in half for products like capacitors or specialized textiles.
Vacuum integrity relies heavily on managing substrate outgassing. Many materials, particularly nylon, paper, and certain polyesters, absorb ambient moisture during storage. When exposed to a deep vacuum, this moisture rapidly boils off, creating a massive gas load that overwhelms the pumping system and ruins metal adhesion. Equipment must feature adequate cryogenic pumping capacity to instantly freeze this water vapor before it interferes with the deposition process.
Modern high-vacuum equipment includes strict safety interlocks and emission controls. High-voltage plasma treaters and intense heat sources require fail-safes to protect operators and the facility. Exhaust from the roughing pumps must be properly filtered to capture oil mist and particulates, ensuring compliance with industrial environmental regulations.
The flexible packaging industry relies heavily on metallized films to protect food, pharmaceuticals, and sensitive chemicals from oxygen and moisture degradation. Free span technology is increasingly applied to ultra-thin PET, BOPP, and CPP films where tension control is paramount. As packaging manufacturers lightweight their materials to reduce plastic usage, the films become thinner and more prone to stretching. The reduced contact friction in a free span system helps maintain the dimensional stability of these ultra-thin webs during the metallizing process.
Aesthetic applications require flawless, mirror-like finishes. Use cases include reflective coatings on specialized polymer webs used for automotive interior trims, high-end labels, and consumer appliance panels. These applications demand pristine, scratch-free surfaces. Any micro-scratch from a process drum becomes highly visible once metallized, leading to immediate quality control rejections.
Roll-to-roll vacuum metallizing provides the ability to achieve chrome-like, highly reflective finishes on plastic substrates without the environmental hazards and toxic byproducts associated with traditional hexavalent chromium electroplating. It offers a clean, dry, and highly scalable alternative for producing metallic finishes on flexible decorative laminates.
The electronics sector presents some of the most demanding specifications for vacuum metallizing. Double-sided metallizing is frequently required for manufacturing film capacitors, RFID antennas, and flexible printed circuits. In these applications, precise, defect-free metal layers are required on both sides of a dielectric film to ensure proper electrical conductivity and capacitance.
Processing these materials on a drum system requires two separate passes, increasing the risk of mechanical damage and contamination between runs. A free span system allows for simultaneous deposition on both sides, ensuring perfect alignment of the thermal history and reducing the handling steps that introduce microscopic faults into the conductive layers.
Investing in specialized roll-to-roll vacuum equipment requires analyzing the upfront costs against long-term operational yield. While the initial capital expenditure for advanced free span systems is substantial, the return on investment is driven by operational efficiency. You calculate the long-term savings generated by reduced scrap rates, eliminated secondary passes for double-sided products, and minimized substrate waste.
When delicate webs are processed on incompatible drum systems, the scrap generated from thermal wrinkling and scratching quickly erodes profit margins. By aligning the machine architecture with the substrate's mechanical limits, manufacturers drastically improve their first-pass yield, turning what would be waste into sellable roll goods.
Transitioning to a free span architecture introduces a steep learning curve for machine operators. Managing web tension and thermal loads without the safety net of a massive chilled drum requires advanced process knowledge. If the line speed drops even momentarily, the suspended web melts instantly, causing a web break that requires venting the chamber and re-threading the machine.
Implementing specific training protocols is mandatory. Operators train in vacuum system diagnostics, leak detection, and advanced web-handling troubleshooting. They understand how to balance evaporation boat power with line speed to maintain optical density without exceeding the thermal limits of the specific polymer being processed.
Vacuum metallizers operate in harsh internal environments. High-volume production includes planned downtime for cleaning evaporation zones, replacing degraded ceramic boats, and servicing the complex pumping groups. Aluminum vapor coats everything inside the chamber, requiring regular manual scraping and cleaning to prevent flaking debris from falling onto the web.
The primary mitigation strategy against unexpected downtime is implementing rigorous predictive maintenance schedules. Maintenance teams track pump-down performance metrics daily. If the time required to reach the operating vacuum begins to creep upward, it indicates a developing leak, degraded diffusion pump oil, or excessive moisture in the chamber. Addressing these issues during scheduled maintenance windows prevents catastrophic mid-roll failures.
Conduct a toll metallizing trial run using a free span system to process your most sensitive substrate before purchasing equipment.
Validate the optical density, metal adhesion, and barrier performance of the trial roll through rigorous lab testing.
Map out the exact tension limits and thermal thresholds of your materials to define your equipment specifications.
Audit your current scrap rates to determine if contact-induced defects justify the transition to a free-floating web path.
Establish a predictive maintenance schedule based on pump-down curves to minimize unexpected downtime.
A: A free span metallizer is a specialized roll-to-roll vacuum metallizing system. The flexible substrate passes over the evaporation source suspended tightly between two rollers, completely avoiding contact with a central chilled process drum during the metal deposition phase.
A: The primary difference is the lack of a central cooling drum. This eliminates contact-induced scratching on the deposition side and allows the equipment to coat both sides of the web simultaneously in a single pass.
A: No. Free span metallizers are strictly designed for continuous roll-to-roll flexible webs, such as polymer films, papers, and textiles. 3D plastic or machined metal parts require batch vacuum metallizing chambers.
A: This architecture is ideal for ultra-thin polymer films, delicate plastics prone to stretching, low-tension webs, and substrates requiring double-sided conductive or decorative coatings without surface scratching.
A: While aluminum is the most common metal used for flexible barrier films, these systems also deposit copper, silver, and zinc for specialized electronic components, RFID tags, or high-end decorative applications.
A: Heat is dynamically managed through precise line speed control, optimizing the physical distance from the evaporation sources to the web, and utilizing aggressive pre-deposition and post-deposition cooling rollers to extract heat immediately after the coating zone.
