Product Advantage
It is applicable to various flexible substrates such as PET, BOPP, CPP, CPE, PE, PN, PVC, etc. And it can metallizing a variety of materials, such as silver, tin, copper, zinc sulfide,aluming, etc.
It truly achieve free of pinhole, free of light line and widely used in high-barrier packaging materials, high-barrier transparent packaging materials, high-quality metallic yarn, medicine packaging, anti-counterfeiting, current collectors for new energy batteries and otherfields.
High-efficiency coating system up to 900 meter per minute. So it truly achieve 20%capacity than same industry and has always been in the international leading level.Our machine has multiple energy-saving device, which can reduce energy consumption by more than 30%.
Outstanding innovative design, rigorous production and manufacturing processes, perfect quality have created the most efficient, stable, energy-saving and safest metallizer.
Technical Parameters
Model | FZG-1650F | FZG-2050F | FZG-2450F | FZG-2850F | FZG-3050F | FZG-3350F | FZG-3650F | |
Max.width(mm) | 1700 | 2100 | 2500 | 2900 | 3100 | 3400 | 3700 | |
Max.rolldiameter(mm) | 800/1000 | 1000 | ||||||

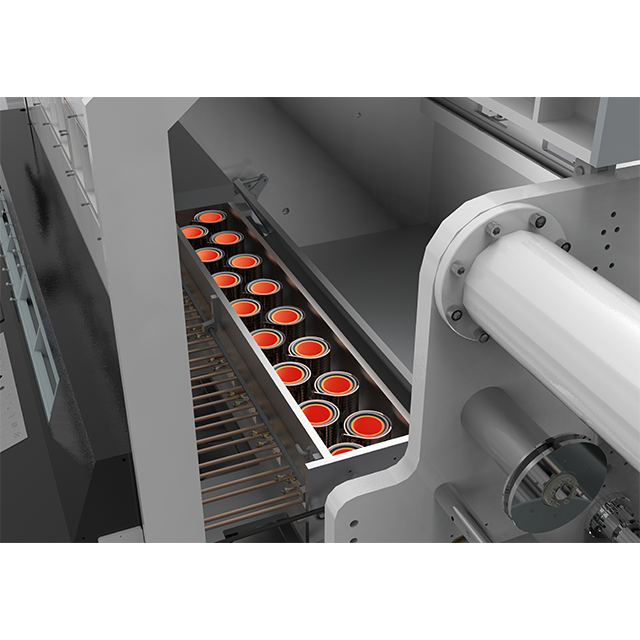

Graphite crucible(pcs) | 11-13 | 14-15 | 16-18 | 18-20 | 20-22 | 22-23 | 23-27 | |
Metallizing pressure(Pa) | 2x10⁻²Pa (4x10⁻⁴mbar) | |||||||
Circulating water(m³/h) | 45 | 50 | 60 | 65 | 70 | 80 | 85 | |
Average power | 240 | 300 | 330 | 360 | 390 | 430 | 460 | |
Substrate materials(um) | PET: 8-35; CPP: 18-60; BOPP PVC: 15-60; | |||||||
Max.winding speed(m/min) | 900 | |||||||
Output/month(t) | 390 | 470 | 560 | 670 | 720 | 780 | 850 | |
